Description

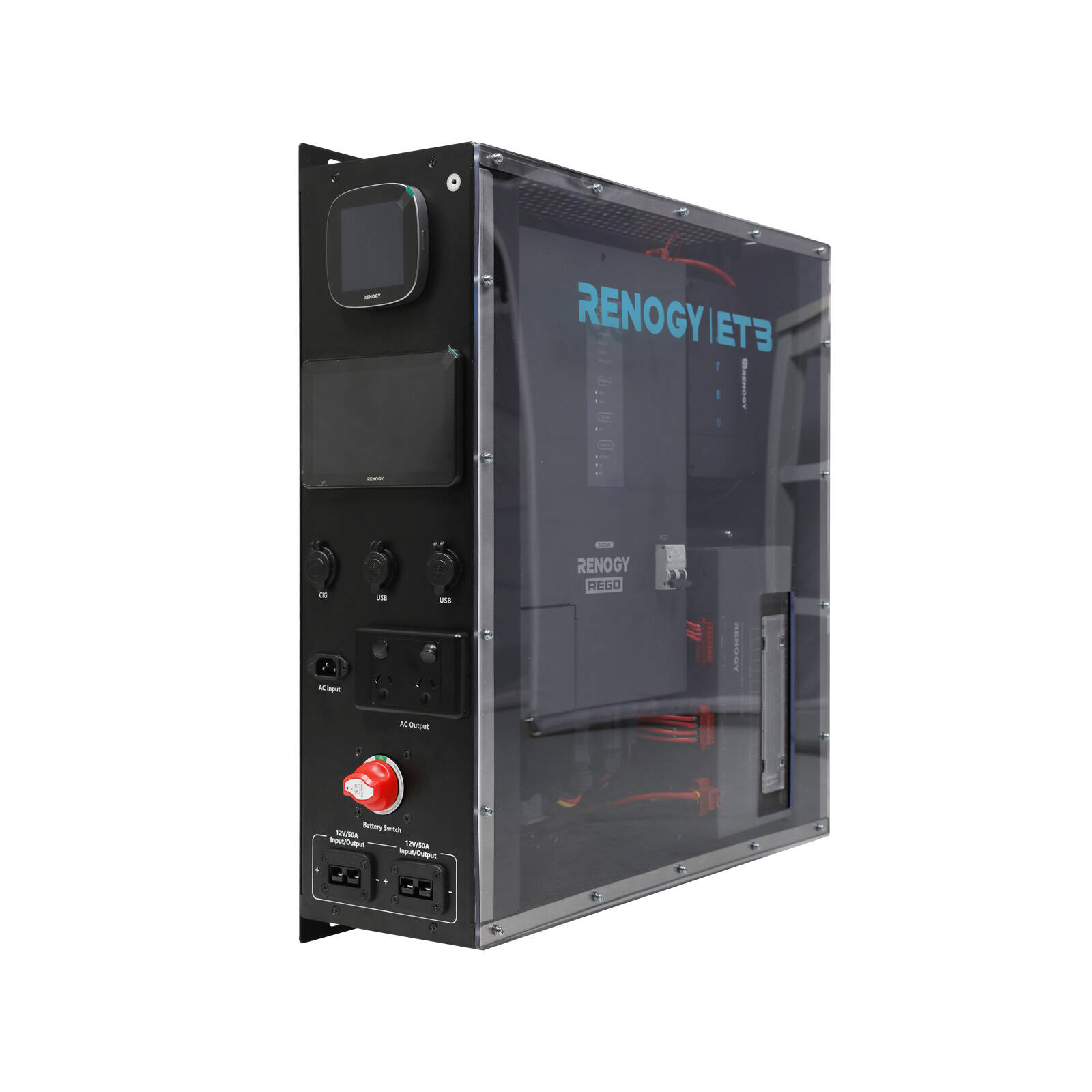

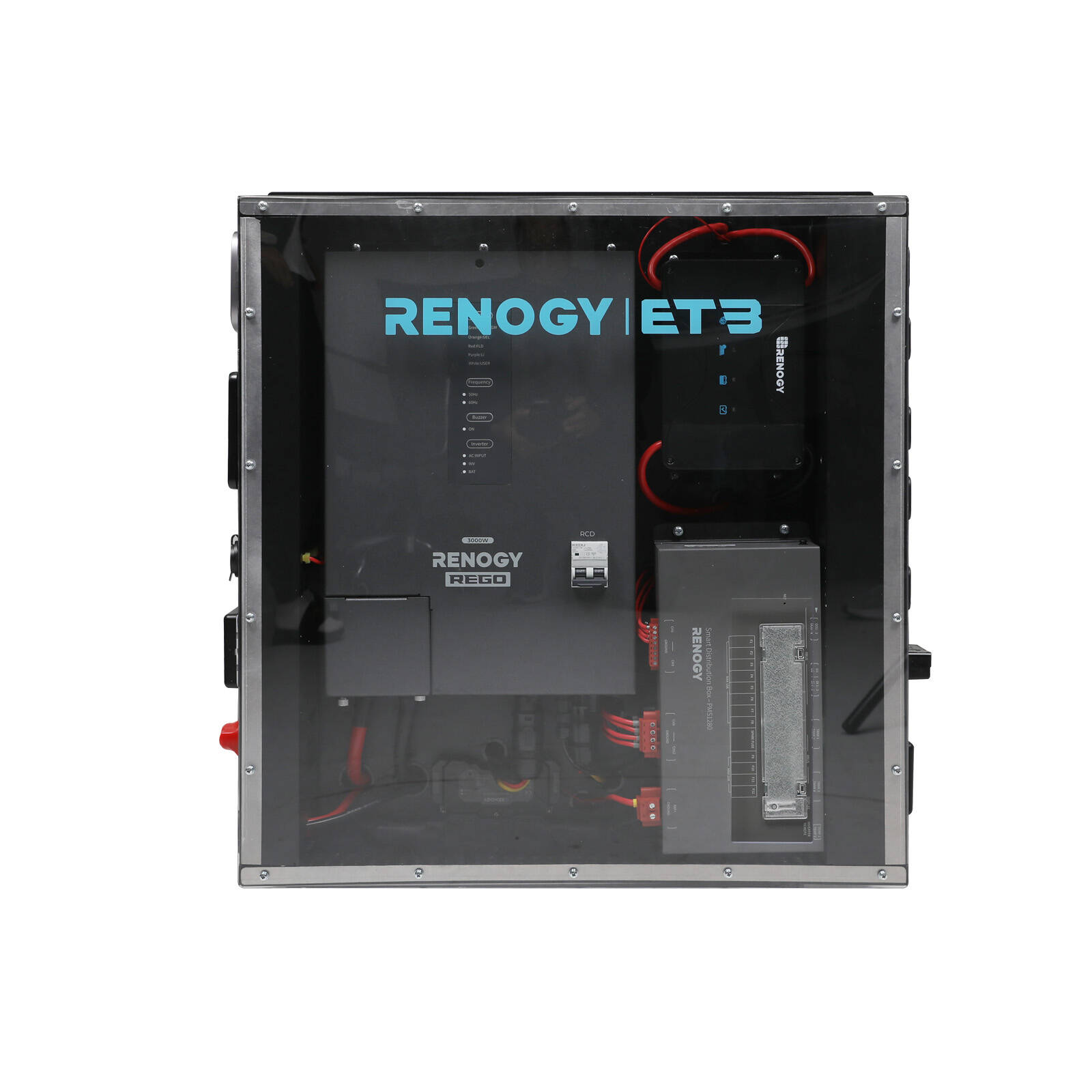

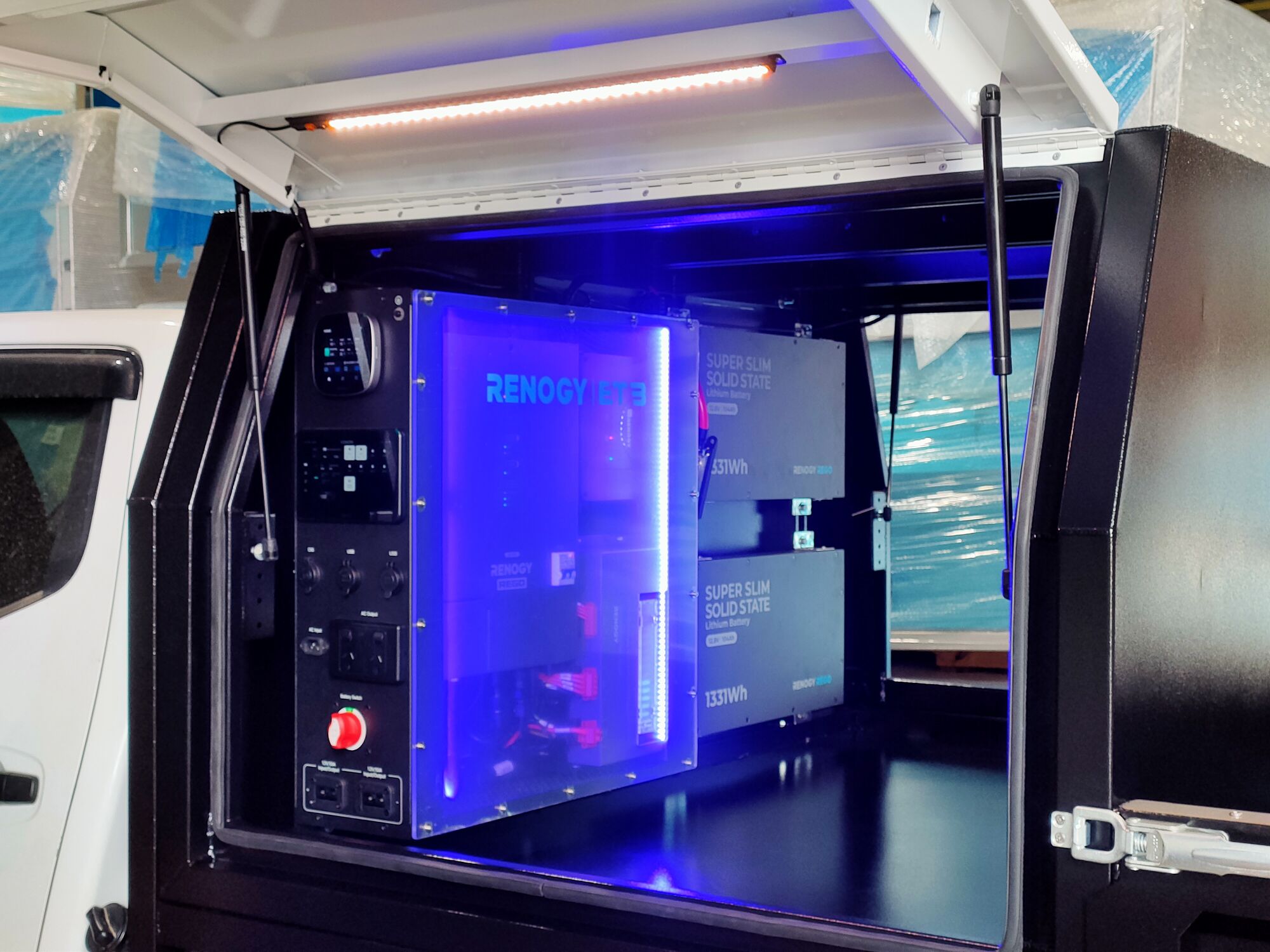

12V Smart Touring Hub Package

Renogy ONE Vision 7 inch Touch Screen Control Panel
- It is a centralized power management touch panel specially designed for recreational vehicles and campervans. When working in association with Renogy ONE Core and PMS1280 Distribution Box, ONE Vision visualizes power management and control, allowing you easily to control your power supply devices and appliances.
  In addition, ONE Vision provides custom scene automation, local troubleshooting solutions, and online troubleshooting support under your permissions, reducing system maintenance costs while enabling a worry-free off-grid journey.
3000W 12V Pure Sine Wave Inverter with 150A AC Charging (1.5h to fully charge 200Ah Battery)
- It inverts direct current (DC) to alternating current (AC) and directly supply power to loads (appliances), and charges the battery when it is connected to the grid power. The inverter charger can switch power supply from the grid power to batteries within 20 milliseconds, ensuring a smooth mode switch without powering off the load.
12V 50A DC-DC On-Board Battery Charger with MPPT
- It charges the auxiliary battery with a starter battery connected to an alternator on your vehicle or with solar panels connected directly to the battery charger.
Battery Switch
Smart Power Distribution System - APP controlled Switches
- It is a centralized direct current (DC) power control hub specially designed for off-grid recreational vehicles, yachts, and motor homes. The distribution box provides 12 circuit channels for load control as well as voltage and current detection, four water level detection circuit channels, two temperature detection ports, and multiple digital input/output signal ports.
  When connecting with Renogy ONE Core, DC Home app, and/or Renogy ONE Vision, the distribution box makes real-time monitoring and control of the connected devices possible.
Energy Monitoring Panel for Battery/Inverter/DC-DC/MPPT
Built-in Bluetooth Smartphone Monitoring System Phone APP - “RENOGY DC HOME”
Tough Aluminium Housing with Easy Open – Black Powder Coated

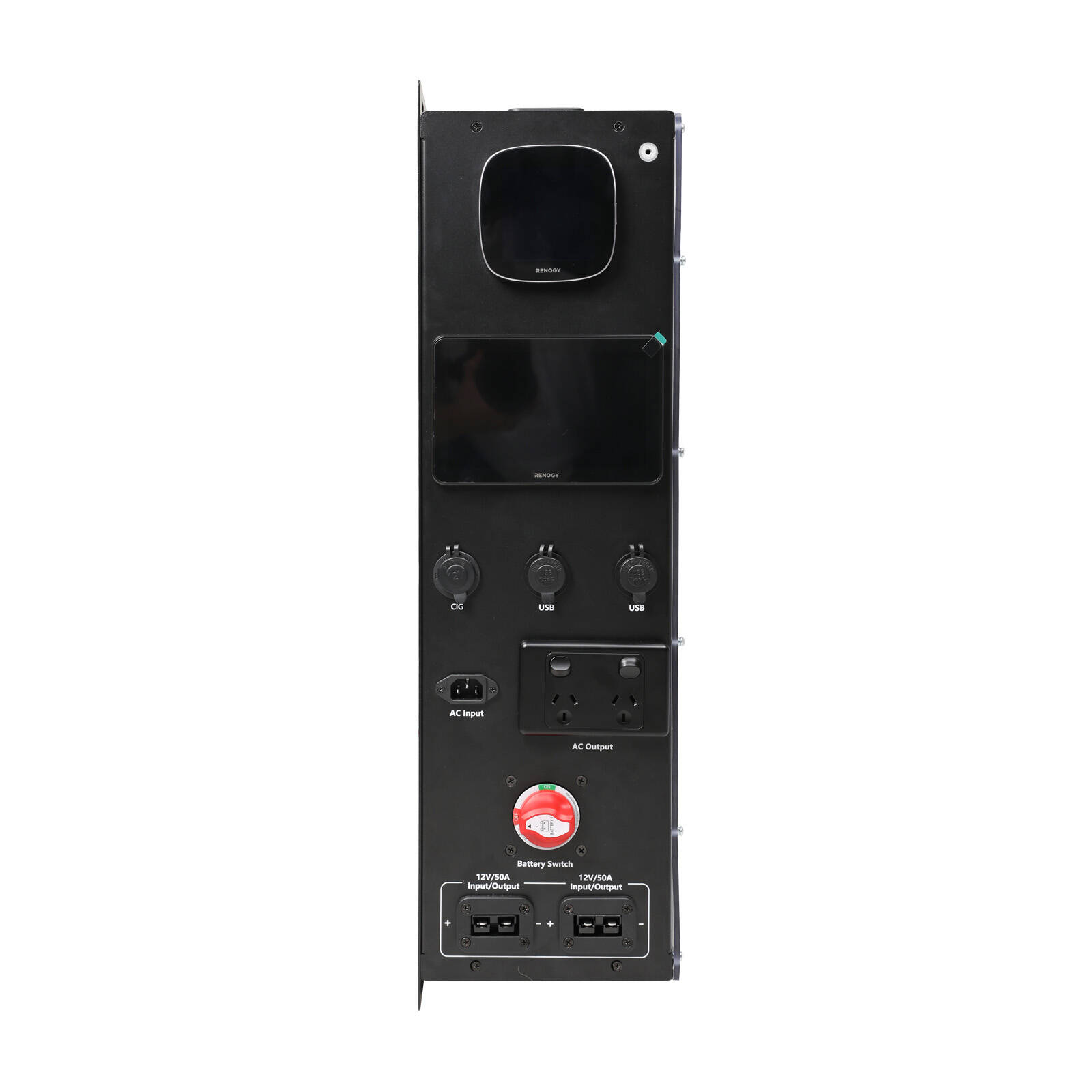

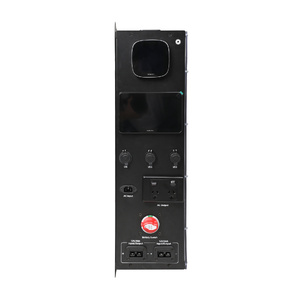

The sockets this 12v system has:
- 1 x CIG Socket
- 2 x USB charger sockets
- 1 x AC input plug
- 4 x AC output sockets
- 1 x Battery switch (275A)
- 4 x Input/Output plugs (12V/50A for each)
- 8 x DC load plugs (4 x 12V/20A + 4 x 12V/10A)
- 1 x Anderson battery plug (275A)

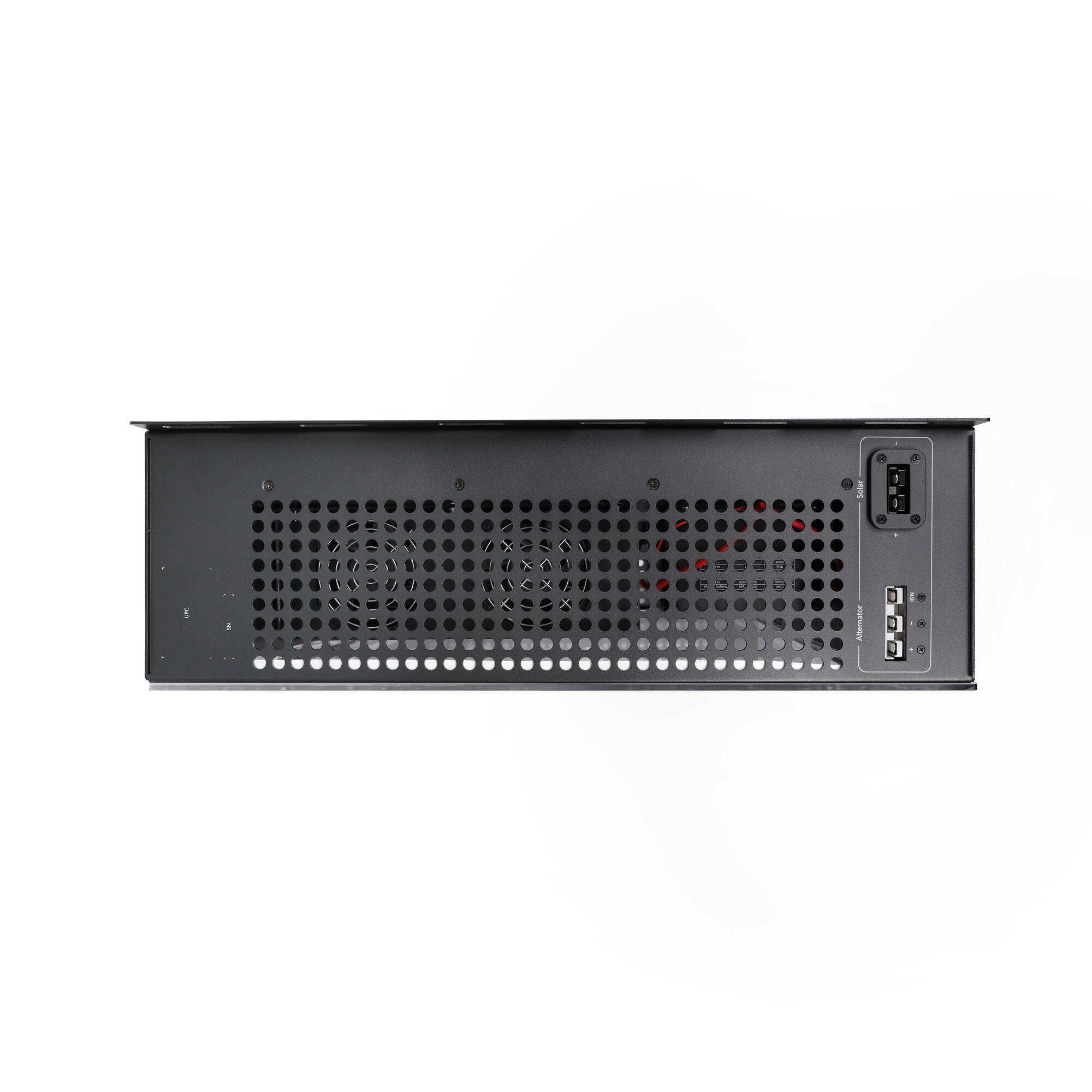

- 1 x Solar input connector
- 1 x Alternator input connector
- 1 x Tank sensor connector
- 1 x Grounding lug

OPTIONS:

Solar Panels:

16BB N-Type 100-Watt Solar Panel $249.99 / pc
(Maximum 6 pcs for this system – 7 hours to fully charge 300Ah)

Battery:

Renogy 12v 200Ah Deep Cycle Lithium Phosphate Battery w/Bluetooth & Self-heating Function - $1299
Renogy 12v 200Ah Deep Cycle Lithium Phosphate Battery w/Bluetooth & Self-heating Function - $1750

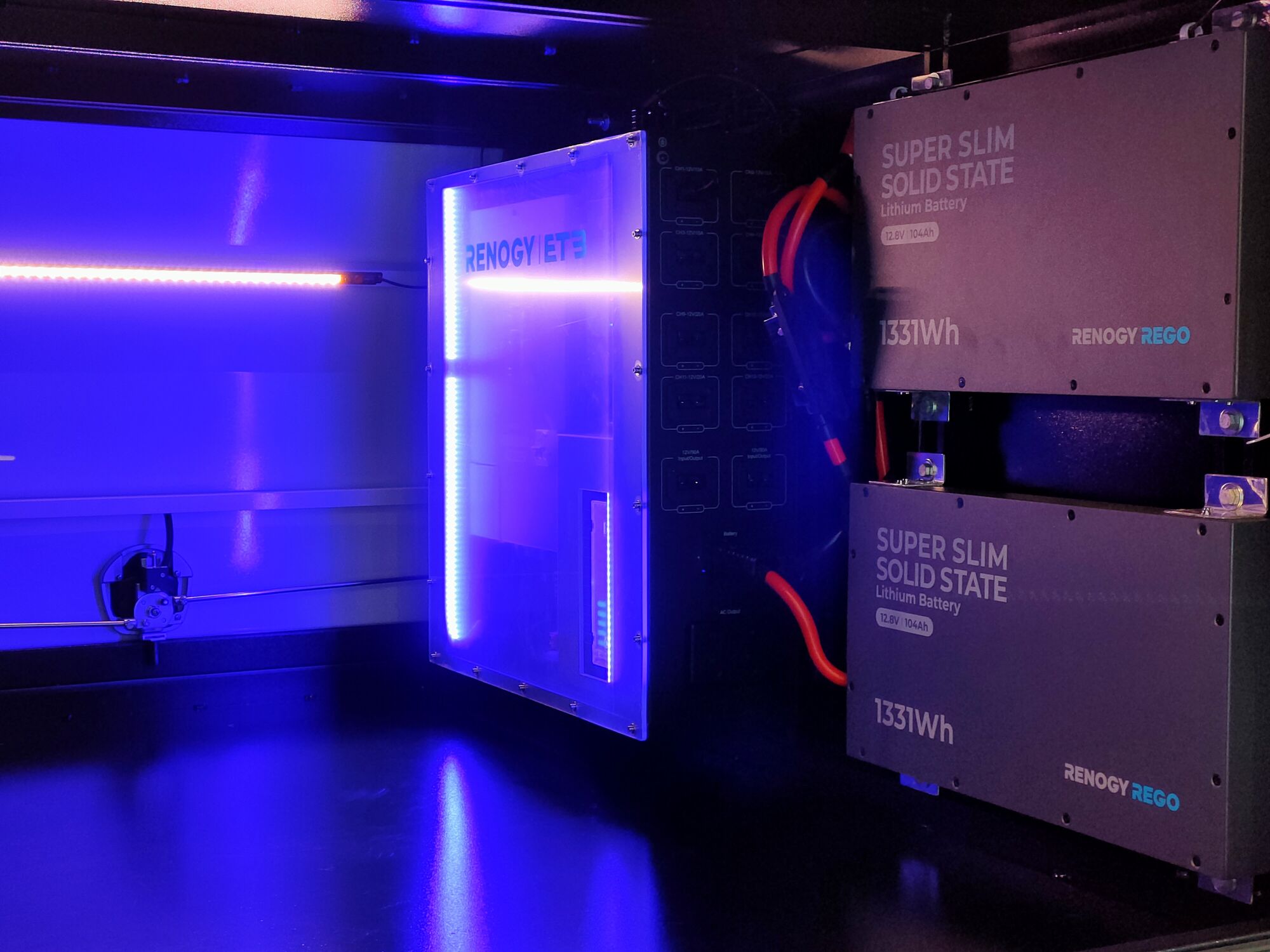

Renogy Slim Latest Technology Solid-State Battery 100Ah - $1140
Other lithium battery options P.O.A

Fitting:

We can do installation on site with extra cost of $400 (Material Included)

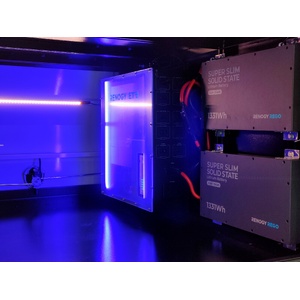

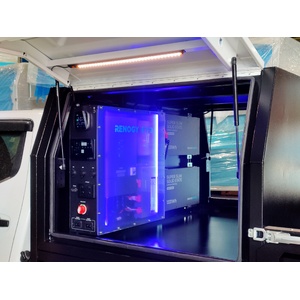

Installation Includes: Fitted to canopy (exclusive to ETB canopies); Wiring of car battery, second battery, LED strip lights, fridge etc.

Specifications

SKU	12V-STH
Brand	ETB
Shipping Weight	80.0000kg
Shipping Width	1.000m
Shipping Height	0.520m
Shipping Length	1.000m
Shipping Cubic	0.520000000m3
