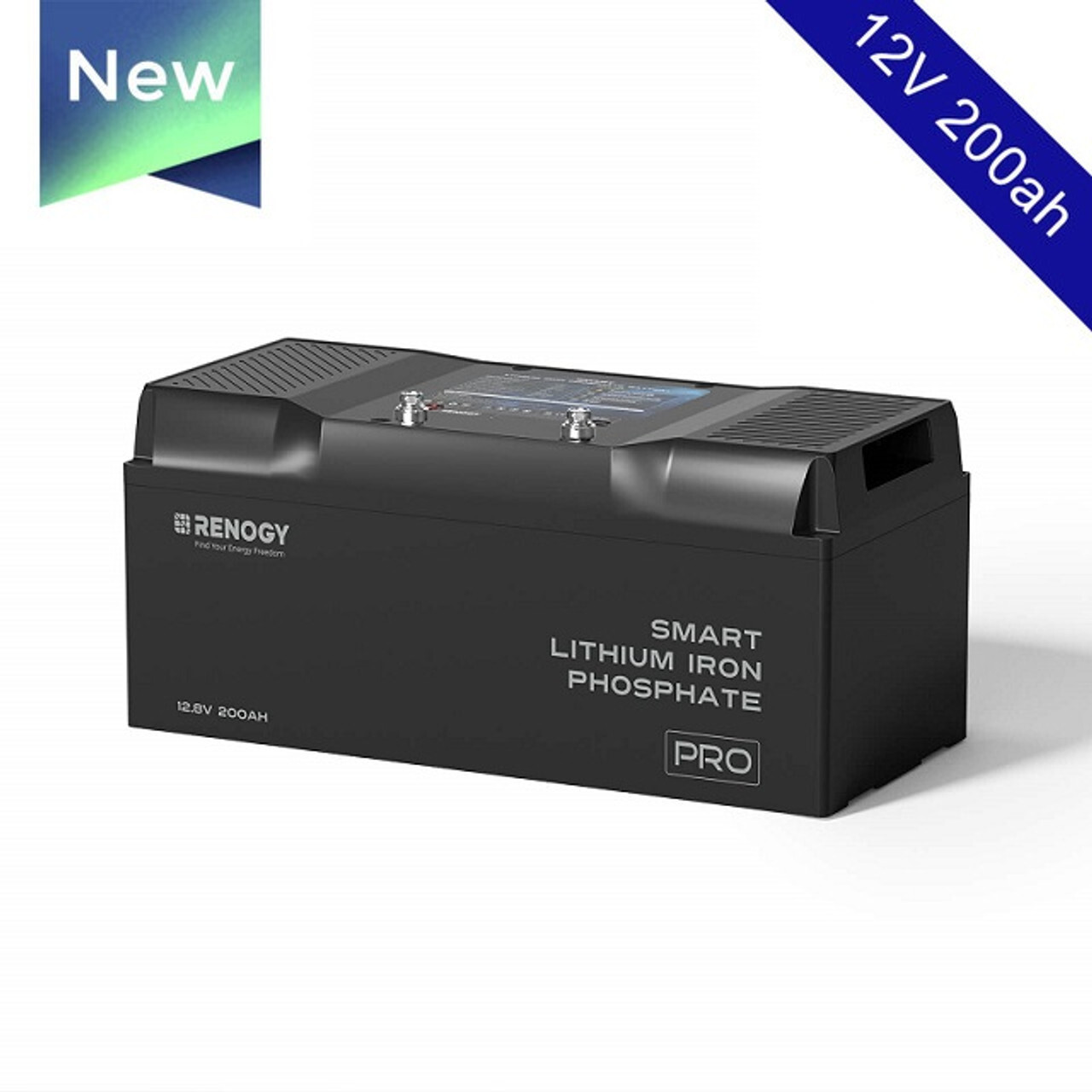

Renogy 12V 200Ah Pro LiFePO4 Battery

Renogy's safest 12V 200Ah LiFePO4 battery for all-weather living

Renogy 12V 200Ah Pro LiFePO4 Battery is set to revolutionize how you experience remote living and adventures by providing unmatched safety, reliability, and convenience in all conditions. Whether you're in the wild or on the water, this battery is your dependable power companion. With a double active safety design consisting of over 60 BMS protections and active backup protection, it goes above and beyond to safeguard your power supply. Its self-heating feature and the UL94 V-0 fire-retardant casing ensure reliable performance in all weather conditions. The battery's rugged structure and mounting holes make installation a breeze, and it's built to withstand the toughest challenges in a bumpy ride. Boasting an IP67 rating and ISO 9227 corrosion resistance certification, it's perfect for fishing, boating, and other marine applications. Plus, the 200Ah Pro battery is equipped with Bluetooth for intuitive energy monitoring, and OTA updates to ensure your battery is always at its best.

Better Safe than Sorry

According to Lithium-ion Battery Incident Reporting from UL Solutions, over 9000 lithium battery-related incidents have been reported around the world. The rapid growth of lithium batteries also comes with an exponential increase in incidents resulting in injuries and fatalities. It's more critical than ever for us to understand where the great risks exist and take active steps to prevent careless abuse.

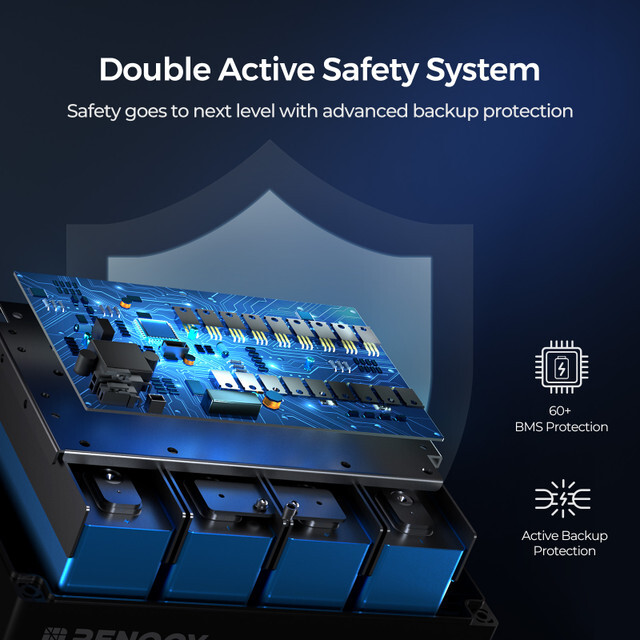

Double Active Safety Design

Designed to safeguard devices, properties, and individuals in an all-around way, the all-new 12V 200Ah Pro LiFePO4 Battery combines software and hardware security to avoid incidents actively.

Primary Safety: 60+ EV-Grade BMS Protection

The automotive-grade battery management system built into the 12V 200Ah Pro battery provides over 60 protection and alerts. This brings greater capability and more precise monitoring in all kinds of environments to identify and reduce electrical & thermal hazards.

Secondary Safety: Active Backup Protection

For the first time, our 12V 200Ah LiFePO4 battery comes with self-control fuses as Active Backup Protection. These smart fuses help cut off the circuit 40x faster than conventional passive protection when a MOSFET switch fails. So the overcurrent won't compromise your battery packs.

Brave the Cold for Ice Fishing

For enthusiasts of winter outdoor pursuits, such as ice fishing, a self-heated LiFePO4 battery is a must-have. This 12V 200Ah Pro LiFePO4 battery can automatically heat up with a charging current greater than 6A to ensure safe charging in sub-zero temperatures, providing consistent power to prolong the life of fish finders and other essentials. (Renogy 12V 20A AC-DC LFP Battery Charger is recommended.)

Robust Power Even in Heatwaves

Living in a warmer climate off the grid is made safer than ever with the all-new Pro lithium battery thanks to the fire-resistant casing (UL94 V-0). It offers outstanding fire resistance to vertical burning, a crucial safety feature to safeguard your power supply against fire hazards and reduce the risks of fire spreading, especially when living in remote areas where emergency response can be delayed.

ELECTRICAL DATA

Rated Capacity (0.5C, 25℃): 200Ah

Nominal Voltage: 12.8V

Energy: 2560Wh

Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Temperature Parameters

Operation Temperature Range: Charge: -20°C to 55°C/ -4°F to 131°F

Operation Temperature Range: Discharge: -20°C to 60°C/ (-4°F to 140°F)

Storage Temperature Range: -25°C to 65°C/ -13°F to 149°F

Operation Relative Humidity: 10% to 95%

Charging Parameters

Voltage Range: 10V to 14.8V

Maximum Continuous Charge Current: 200A

Mechanical Specifications

Dimension (L x W x H): 467 x 212 x 208 mm / 18.4 x 8.4 x 8.2 in

Weight: 23 kg / 50.7 lbs.

Terminal Bolt Size: 2 x M8 x 1.25 x 12 mm

Protection Rating: IP67

Discharging Parameters

Maximum Continuous Discharge Current: 200A

Peak Discharge Current: 270A@30s

Certifications

UL, MSDS, UN38.3, FCC, CE, PSE, and UKCA: YES

opc:

Warranty

7-year material warranty: true
