Renogy 12V 200Ah Pro LiFePO4 Battery

Renogy's safest 12V 200Ah LiFePO4 battery for all-weather living



The Next-Gen LiFePO4 Cells

Renogy takes a step forward to introduce the solid state cells with 90% electrolytes in RV batteries (so far there is no solid state battery with 100% electrolytes on the market), bringing safety and lifespan to the next level.



Inherently Safe & Stable

The new Renogy slimline LiFePO4 battery introduces revolutionary solid electrolytes, ensuring that the battery does not swell or burn when getting punctured or crushed.

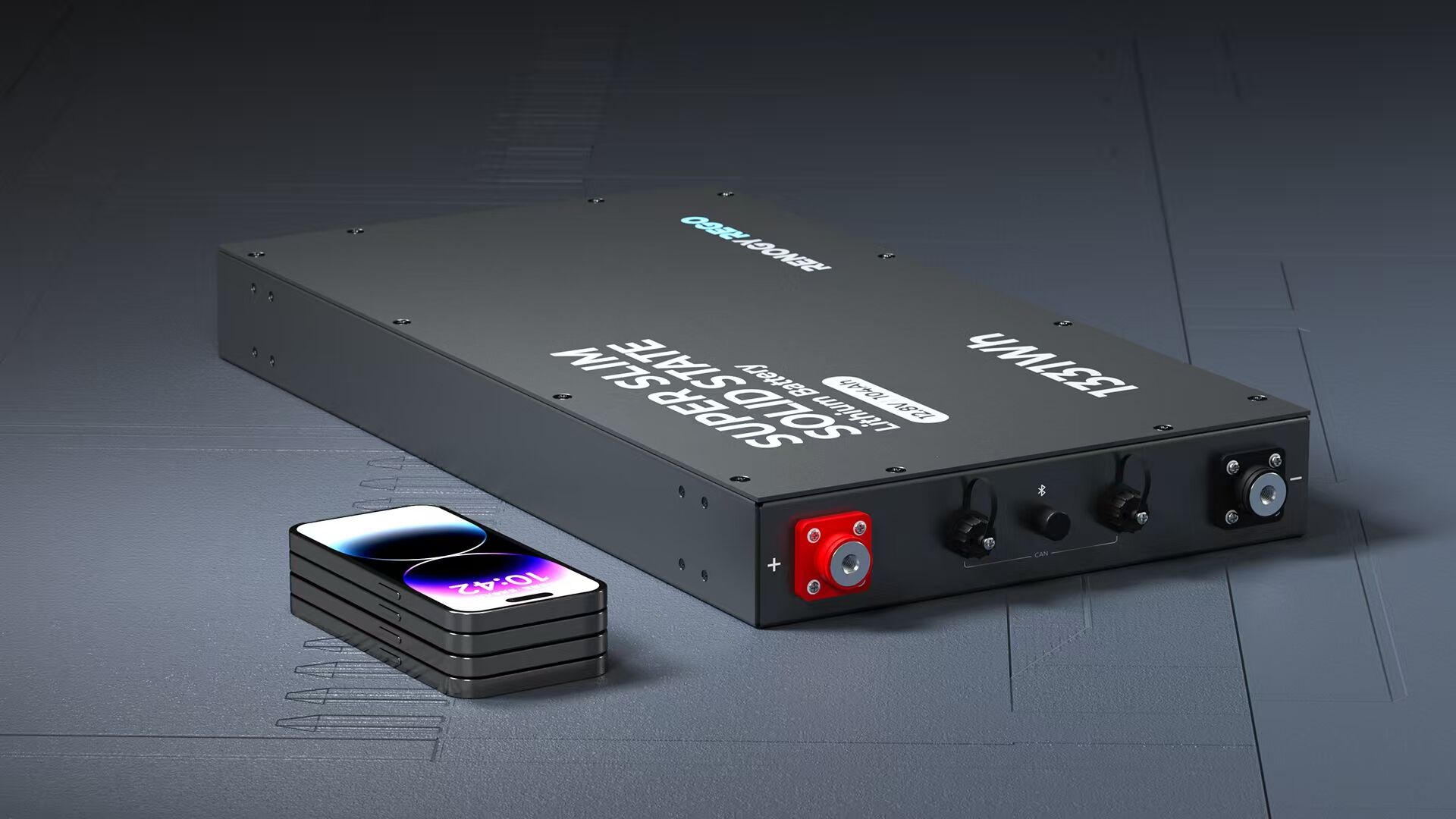

Super-Slim Design. Effortless Installation

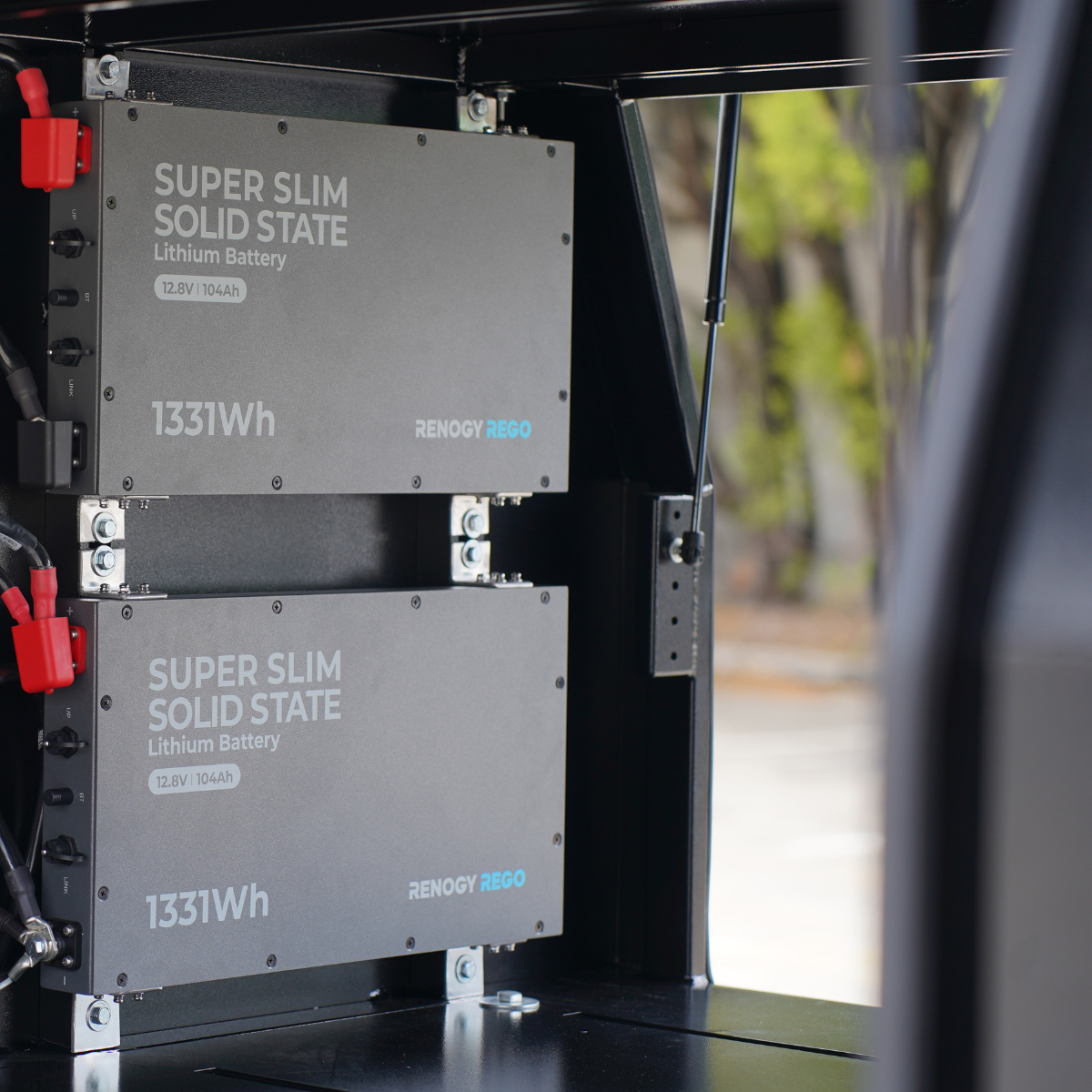

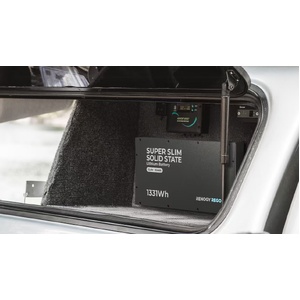

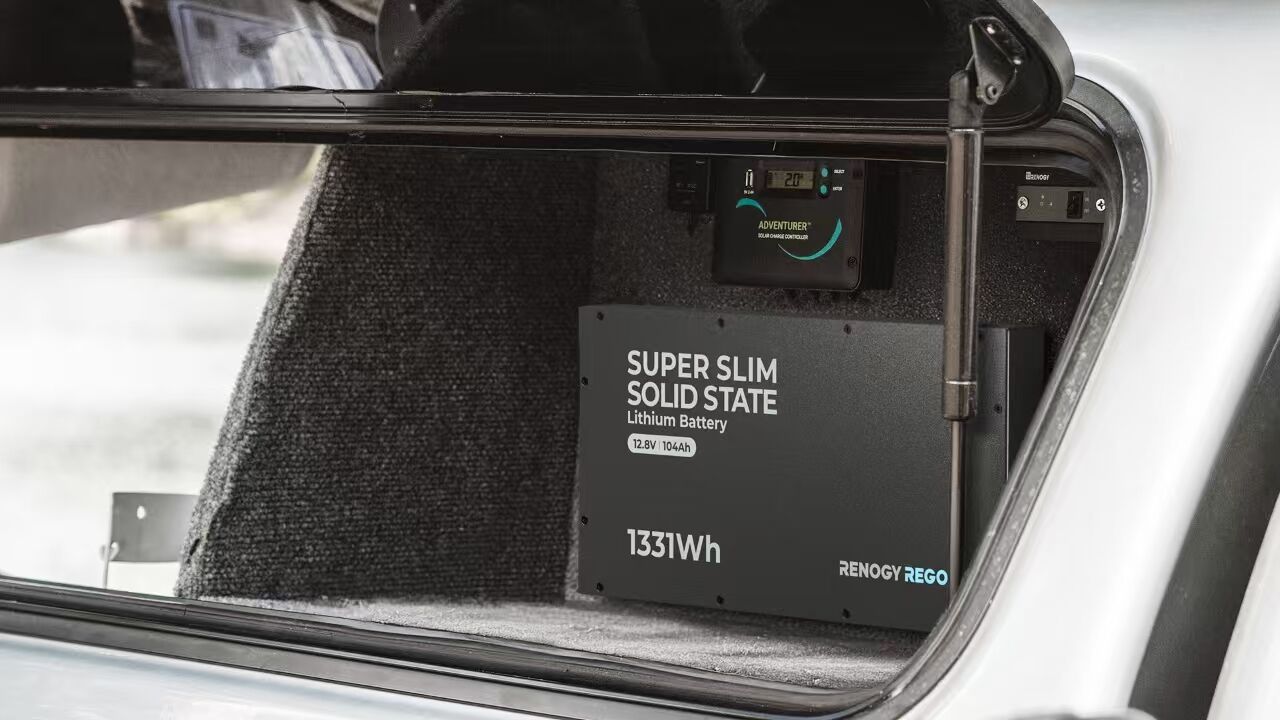

As thin as 2.4 inch / 61 mm, the Renogy Slimline LiFePO4 Battery can snugly fit into the back of seat, under seat cabins, or other tight spaces in overlanding vehicles.



Built Tough for the Wild

When the off-road life calls, the Renogy Slimline LiFePO4 battery is ready to answer. Its rugged IP67-rated enclosure protects against dust, water, and the elements, so you can confidently tackle any terrain. The added UL94 V-0 fire-resistant rating provides critical safety, letting you focus on the thrill of the adventure.

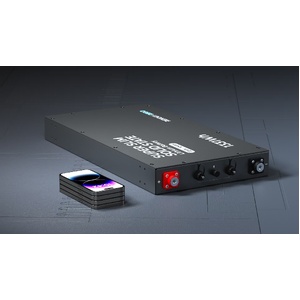

Double Active Safety Design

Designed to safeguard devices, properties, and individuals in an all-around way, the all-new 12V 200Ah Pro LiFePO4 Battery combines software and hardware security to avoid incidents actively.



Travel Light with Confidence

Stop overloading your 4x4 pickup trucks with lead-acid batteries and gas generators. This 12V 104Ah Solid-State LFP Battery helps reduce weight and save more room for your essentials to venture further.



Battery Type

Lithium Iron Phosphate

Nominal Voltage

12.8V

Rated Capacity

104Ah (0.5C, 25℃)

Voltage Range

10V to 14.8V

Maximum Charge Current

100A

Maximum Discharge Current

200A

Peak Discharge Current

290A@30s

Cycle Life (0.5C, 25℃)

6000 Cycles (80% DOD, 80% EOL)

Charge Temperature Range

14°F to 131°F / -10°C to 55°C (14°F to 32°F / -10°C to 0°C, 0.1C)

Discharge Temperature Range

'-4°F to 140°F / -20°C to 60°C

Storage Temperature Range

'-4°F to 140°F / -20°C to 60°C

Operation Relative Humidity

5% to 95%

Connection Method

Series & Parallel (max. 4P4S), Parallel (max. 16P), Series (max. 4S)

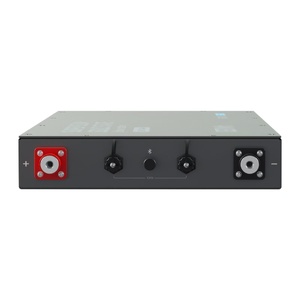

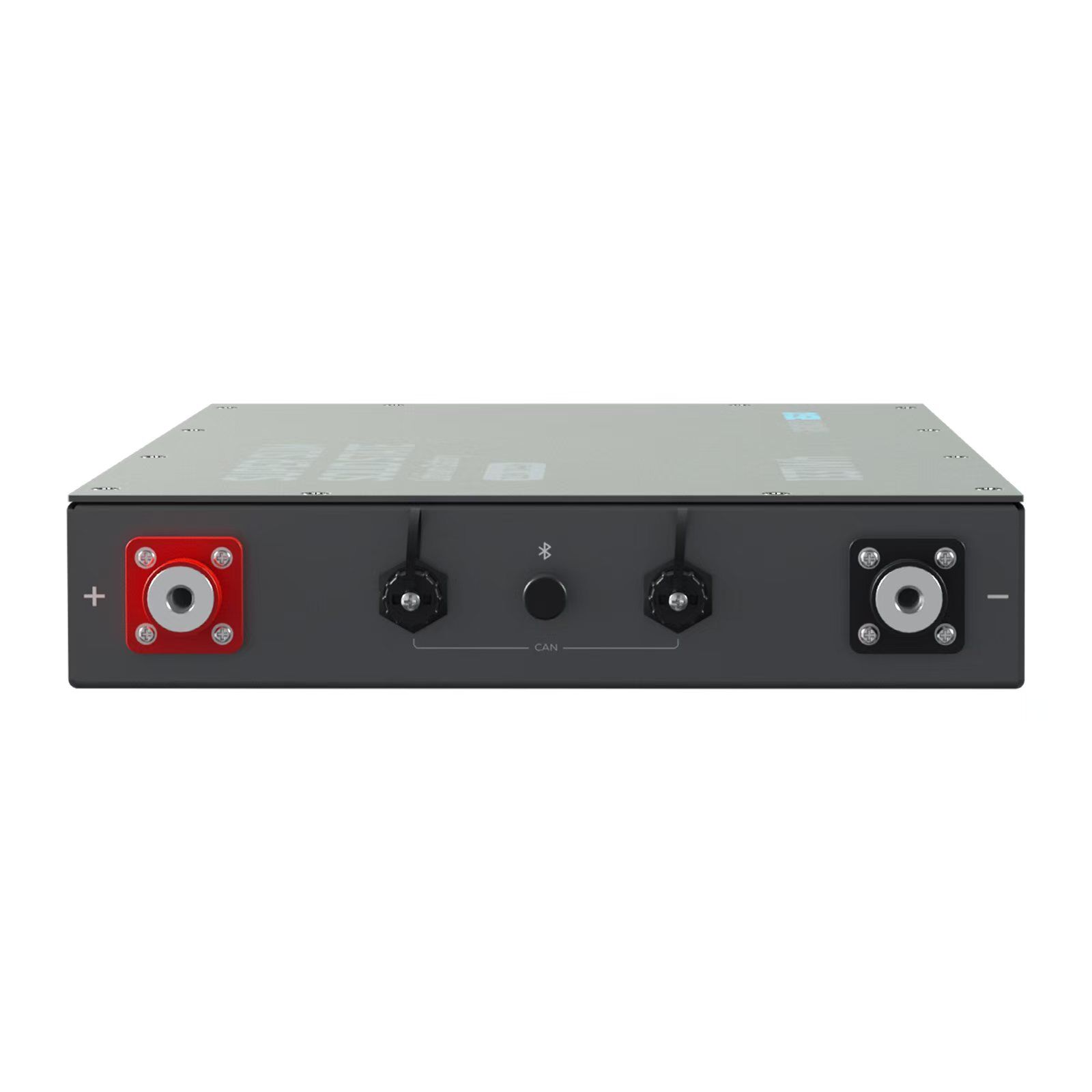

Terminal Bolt Size

Terminal Bolt: M8 x 1.25 x 12 mm Long Terminal Bolt: M8 x 1.25 x 16 mm

Recommended Terminal Torque

70.8 in-lb / 8 N·m

Protection Rating

IP67

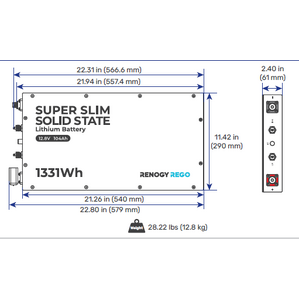

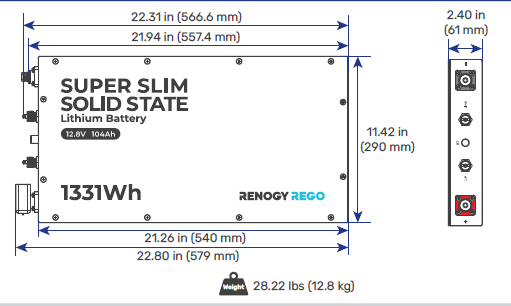

Dimensions

22.8 x 11.4 x 2.4 in / 579 x 290 x 61 mm

Weight

28.22 lbs / 12.8 kg



Warranty:  7 Years Warranty
