Choosing the Best Ute Canopy Manufacturer in Australia: A Built-to-Last Blueprint
The best ute canopy manufacturers in Australia prioritize heavy-duty structural integrity, utilizing a minimum of 2.5mm marine-grade aluminium flat plate, comprehensive internal Unistrut structural frameworks, and fully TIG-welded seams. Premium fabricators protect cargo via heavy-duty whale tail locks featuring secure 3-point locking mechanisms paired with full-length, concealed stainless steel piano hinges and dual weather-proof pinch-weld rubber seals. When assessing commercial, touring, or fleet setups, choosing jack-off compatible designs with structural roof bracing ensures long-term payload versatility and off-road reliability in harsh Australian environments.
1. Introduction: The High-Stakes Reality of Australian Canopy Engineering
If you drive a commercial workhorse or an off-road touring rig across Australia, your ute canopy isn't just an accessory storage unit — it is your mobile workstation, your secure vault, and your primary line of defense against the harshest environments on earth. Whether you are navigating corrugated dirt tracks in the outback under extreme thermal heat or handling heavy-duty tooling loads across city construction sites, your canopy's engineering determines your operational uptime.
When we set out to analyze what truly defines the best ute canopy manufacturer in Australia, we realized that standard online reviews barely scratch the surface. They focus on cosmetic looks or cheap pricing structures. But as engineers and fabricators who build gear for the toughest trades, we know that cosmetic appearance means nothing if your canopy doors warp over corrugated roads, leaks ruin your thousands of dollars of electrical diagnostics gear, or lock mechanisms fail in remote zones.
Choosing the Best Ute Canopy Manufacturer in Australia: A Built-to-Last Blueprint
This comprehensive guide is designed to remove the guesswork entirely. We will dive deep into structural blueprints, material metallurgy, locking geometries, and weather-proofing standards. By the end of this deep-dive guide, you will know exactly how to evaluate a custom or pre-engineered manufacturer like a professional structural welder. Our goal is simple: to give you all the data necessary so you never have to return to a search engine to double-check structural specifications again.
2. Structural Metallurgy: Why Material Profile and Grade Dictate Longevity
When you search for a dual cab canopy, you will see a massive variation in prices. The hidden reason behind this price variance lies within the structural metal profile and structural thickness.
Marine-Grade Aluminium Flat Plate vs. Commercial Checker Plate
We have put multiple variations through stress testing, and the data is conclusive: for premium durability and clean structural aesthetics, 2.5mm marine-grade aluminium flat plate is the industry benchmark.
2.5mm Flat Plate provides optimal structural rigidity. The flat surface allows for flawless material tracking during machine bending and guarantees clean, continuous penetration during automated or manual TIG welding. It gives a sleek finish that perfectly matches modern tray headboards and cab profiles.
Checker Plate Options, while excellent for scratch resistance and industrial utility aesthetics, thinner variants (like 1.5mm or 2.0mm) lack the outright structural yield strength required to support heavy external roof loads without oil-canning or flexing under high torsional vibration.
The Role of Internal Bracing and Unistrut Frameworks
A shell is only as strong as its skeleton. If a manufacturer builds a canopy by simply folding the outer sheet and welding the corners, that unit will eventually crack at the stress concentration points over washboard dirt tracks.
Premium modules incorporate an integrated internal matrix of structural aluminium tubes and Unistrut channels, forming a unified structural cage. This internal Unistrut framework achieves two critical engineering breakthroughs:
- Distributed Load Dynamics: Safely transfers down-forces from heavy roof racks, rooftop tents, or commercial ladders down through the vertical structural pillars, enabling a massive 300kg top load capacity (evenly distributed).
- Infinite Internal Modular Customization: Because Unistrut allows for spring-nut and bolt anchoring anywhere along the vertical channel, you can bolt in custom 12V electrical boards, pantry slides, internal tool drawers, or dog boxes without ever drilling holes through the outer skin — preserving your weather seal permanently.
3. The Functional Anatomy of a Zero-Failure Ute Canopy
Door Configurations and Structural Rigidity
Most users face a choice between a 2-door and a 3-door canopy. A 2-door flat aluminium dual cab canopy offers distinct structural benefits for dual-cab platforms. By removing the rear door, you maximize structural side-access length and retain a solid, uninterrupted rear wall panel. This rear plate acts as a major structural bracing shear wall, drastically reducing side-to-side twisting when your ute's chassis undergoes heavy articulation off-road.
Concealed Stainless Steel Piano Hinges and Gas Struts
Full-Length Concealed Stainless Steel Piano Hinges: External leaf hinges are highly vulnerable to dust ingress, pin-wear, and physical grinding attacks. A full-length concealed stainless steel piano hinge runs the complete length of the door opening. Being hidden internally means it cannot be cut or hammered out, and it ensures perfectly even weight distribution across the door panel every time it cycles open.
Dual-Calibrated Gas Struts: Each door must utilize dual heavy-duty gas struts anchored via reinforced ball joints. This prevents door warping when opening against strong wind gusts and ensures smooth, automated lifting motion during repetitive commercial deployment.
4. Security Hardpoints: The Mechanics of 3-Point Anti-Theft Protection
A standard single T-handle lock or central tongue latch represents a major security vulnerability on modern work sites. Because they only secure the door at one central point, an experienced thief using a simple pry bar can flex the upper or lower corners of the door panel open in seconds.
To eliminate this threat completely, the industry standard for secure utility builds relies on a heavy-duty whale tail lock paired with an integrated 3-point mechanical locking matrix.
When you close the door and compress the primary compression handle, the internal mechanism shifts your security footprint from a single center point to three distinct locking axes simultaneously: a top deadbolt that engages the upper frame rail pocket, a center deadbolt that secures the direct center latch point, and a bottom deadbolt that sinks into the lower tray floor assembly.
Standard Latches vs. 3-Point Whale Tail Systems
| Engineering Metric | Standard Single T-Handle Latches | Premium 3-Point Whale Tail Systems |
|---|---|---|
| Locking Hardpoints | One central point along the door rim | Three distinct points: Top, Center, and Bottom |
| Pry-Bar Resistance | Poor — door edges can easily be pried open and bent back | Extreme — corner leverage forces are transferred straight into deadbolt pins |
| Sealing Assistance | Pulls center shut; allows top/bottom edges to rattle or vibrate | Pressurized closure — pulls the entire door plane flush against automotive rubber seals |
| Integration | Basic key cylinder with low barrel security | Advanced — central locking compatible with key-override and padlock loops |
By anchoring the door panel at the top, middle, and bottom simultaneously, this three-pronged locking assembly absorbs off-road vibrations completely. This stops the door frame from shifting or micro-rattling while driving over corrugated tracks, preserving both your locks and your gas struts for years to come.
5. Complete Engineering Analysis: 1800mm Lift-Off Canopy

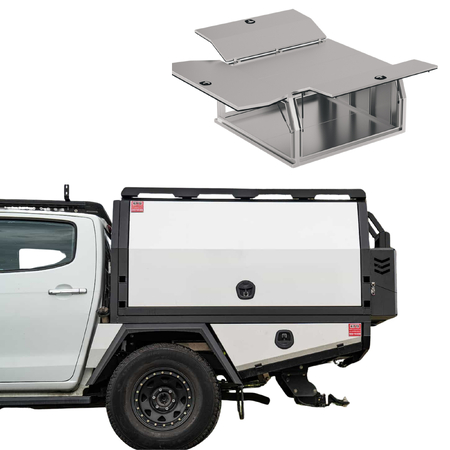

When we analyze real-world applications of these manufacturing philosophies, the 1800mm Lift Off Flat Aluminium Ute Canopy serves as a perfect engineering case study, built to directly address the common pain points that trade operators and overlanders experience over years of heavy use.
Technical Performance Matrix
| Engineering Metric | Specification Parameters | Functional End-User Benefit |
|---|---|---|
| Material Construction | 2.5mm High-Grade Aluminium Flat Plate | Maximum dent resistance; smooth matching lines to cab profiles |
| Internal Skeleton | Aluminium Tube Truss + Vertical Unistrut Frame | Structural roof rating up to 300kg; completely modular internal bolting |
| Welding Execution | 100% Continuous TIG-Welded Seams | Complete structural fusion; zero pinhole leaks under high flex conditions |
| Hinge Mechanism | Concealed Full-Length Stainless Steel Piano Hinge | Tamper-proof security; ultra-smooth opening geometry across long life cycles |
| Locking Hardpoint | Heavy-Duty Whale Tail Handles with 3-Point Rods | High-security anti-theft design; pulls door perfectly flush into weather seals |
| Floor System | Integrated Reinforced False Floor System Included | Prevents structural sag; anchors heavy internal slide assemblies safely |
| Weather Defense | Deep Inverted Gutter Channels + Dual Pinch-Weld Rubber | Zero dust tracking; complete water exclusion at high highway speeds |
| Utility Option | Full Jack-Off / Lift-Off Leg Compatibility | Quick transformation from field service asset to open utility tray deck |
Dimensions and Tray Geometric Matching
The geometric footprint is precision-optimized for modern Australian dual-cab vehicle platforms such as the Toyota HiLux, Ford Ranger, Isuzu D-MAX, and Mitsubishi Triton.
Measuring 1775mm Wide x 1800mm Long x 850mm High, it incorporates a precision-engineered 480mm bending point and a 1500mm top width. This exact taper ensures that the canopy lines match perfectly with standard tray headboards and minimize wind aerodynamic drag, helping maintain your vehicle's factory fuel efficiency and reducing cabin wind whistle at highway speeds.
6. The Dual-Purpose Advantage: Two Trucks in One
Choosing a jack-off compatible system completely changes how you use your vehicle. Instead of locking your utility truck into a single configuration forever, this setup allows your rig to adapt to your schedule within 10 minutes.
Workday vs. Weekend Configuration
| Feature Profile | Weekday: Tradie and Touring Mode | Weekend: Open Tray Utility Mode |
|---|---|---|
| Vehicle Profile | Fully Loaded Setup — the canopy system is clamped securely onto the tray bed | Clean Open Deck — canopy is lifted off via mechanical jack legs and left freestanding in your garage |
| Primary Utility | Secure tool organization, weather-proof gear storage, site work, or overland basecamp setup | Hauling bulk materials (soil, sand, gravel), transporting long timber lengths, or moving machinery |
| Operational State | Ready for Action — heavy equipment remains packed, dry, and organized right where you left it | Lightweight Efficiency — reduced vehicle weight boosts fuel efficiency and clears the tray floor entirely |
By unpinning the high-tensile chassis clamps and winding up the mechanical legs, you don't have to choose between a dedicated commercial workhorse and a flexible open-bed truck. You get both — with a 10-minute transformation.
7. The Physics of Weatherproofing: Inverted Gutter System
Most cheap canopy leaks happen because water tracks down the outer wall and pools directly against a flat rubber seal. Over time, highway wind pressure forces that water right past the rubber. To prevent this completely, a physical defense system redirects water before it ever touches the primary seal.
Engineering Layers of the Waterproof Barrier
| Structural Defense Layer | Mechanical Function | End-User Problem Solved |
|---|---|---|
| Inverted Gutter Deflector | Built into the sheet metal frame fold to catch inbound water tracing down the exterior panels | Prevents water from pooling on top of the door frame or leaking in when you open the door |
| Recessed Lip Geometry | Creates a deep, hidden seat for the rubber seal, keeping it out of direct exposure to sunlight and high-velocity wind pressure | Prevents high-speed highway wind from driving fine outback dust or torrential rain past the seals |
| Dual Pinch-Weld Rubber | A heavy-duty automotive seal that clips tightly over the metal edge with an internal steel spine, rather than using cheap stick-on glue | Eliminates adhesive failure over hot Australian summers; guarantees a pressurized, continuous hermetic seal |
8. Comparative Evaluation Matrix: How to Spot Premium Quality
Use this definitive quality indicator table to compare manufacturers on the showroom floor:
| Architectural Component | Low-Tier Budget Canopies | Premium High-Authority Standard |
|---|---|---|
| Material Base | 1.5mm – 2.0mm thin sheet metal or cheap checker plate profiles | Minimum 2.5mm Marine-Grade Aluminium Flat Plate |
| Welding Method | Intermittent tack welding with cosmetic seam filler or silicone | 100% Continuous Structural TIG-Welded Seams |
| Internal Reinforcement | None, or basic sheet metal gussets riveted onto panels | Full Aluminium Tube Truss + Vertical Unistrut Frame System |
| Floor Engineering | Open bottom shell with no structural floor included | Fully Enclosed, Structural Reinforced False Floor Matrix |
| Locking Engineering | Basic single-point T-Locks vulnerable to manual prying | Heavy-Duty Whale Tail Handles with 3-Point Steel Rod Deadbolts |
| Hinge Architecture | Multiple short external leaf hinges fixed with pop-rivets or short bolts | Full-Length, Completely Concealed Stainless Steel Piano Hinges |
| Dust/Water Defense | Flat stick-on foam tape prone to peeling, degradation, and leaks | Deep Inverted Deflection Gutters + Automotive Dual Pinch-Weld Rubber |
| Utility Flexibility | Permanent bolt-down only; prone to structural distortion if removed | True Structural Jack-Off Compatibility via Reinforced Sockets |
9. Step-by-Step Buying and Outfitting Checklist
Before finalizing an order with any Australian manufacturer, process your selection through this field-tested outfitting roadmap to ensure you get exactly what your vehicle requires.
Step 1: Verify True Vehicle Axle Payload Capabilities
Calculate your remaining Payload and Gross Vehicle Mass (GVM). A premium 1800mm lift-off flat plate system weighs approximately 200kg due to its thick 2.5mm skin and internal steel-tough framing. Ensure your tray architecture and rear suspension springs are rated safely for this unit plus your internal gear weight.
Step 2: Match Canopy Footprint to Your Tray Dimensions
Measure your tray deck floor space. Ensure your chosen length leaves enough clearance for rear tray dropsides, trundle drawers, or towbar wiring harnesses without protruding past your rear light panels.
Step 3: Plan Your Internal Electrical and Accessory Tooling Layout
Map out your internal fitout before ordering. Utilize the integrated Unistrut framework channels to position your 12V dual-battery systems, control panel boards, drop-down fridges, or tool chest drawers without drilling structural holes outward.
Step 4: Determine If You Require Lift-Off Flexibility
Assess if your truck pulls double-duty as a family hauler or bulk materials transporter. If yes, invest in the jack-off configuration option so you can drop your full touring setup at home whenever your tray bed needs to be completely clear.
10. Conclusion: The Definitive Verdict on Premium Australian Utility Fabrication
Investing in a premium utility setup isn't about choosing the lowest price tag — it's about investing in absolute peace of mind. When you are deep in the outback or managing a multi-vehicle fleet on a commercial job site, your equipment must perform flawlessly day after day.
The best canopy manufacturers prioritize heavy-duty structural integrity over cheap, mass-produced shortcuts. By insisting on a minimum of 2.5mm marine-grade aluminium flat plate, full internal structural tube truss reinforcement with Unistrut channels, highly secure 3-point whale tail locking geometries, and deep inverted weather gutter channels, you ensure that your gear stays safe, dry, and structurally sound for the long haul.
At ezToolBox, we have engineered our comprehensive product range — including the signature 1800mm Lift Off Flat Aluminium Ute Canopy — to hit every single one of these rigorous engineering criteria. Backed by a full 2-year structural warranty, fully integrated false floor configurations, and robust national pick-up store locations across Victoria (Laverton North), Queensland (Coopers Plains), and New South Wales (Penrith), we build our gear to survive anything the Australian landscape can throw at it.
Don't settle for shortcuts that leave you stranded with jammed locks or wet gear. Choose an engineered system built to last, and secure your mobile workspace for years to come.
