In the Australian 4x4 and commercial vehicle landscape of 2026, the traditional "Tray + Canopy" combination is rapidly losing ground to the Chassis Mount Canopy. For professional tradespeople, remote tourers, and fleet managers, this shift represents a move toward specialized vehicle engineering.

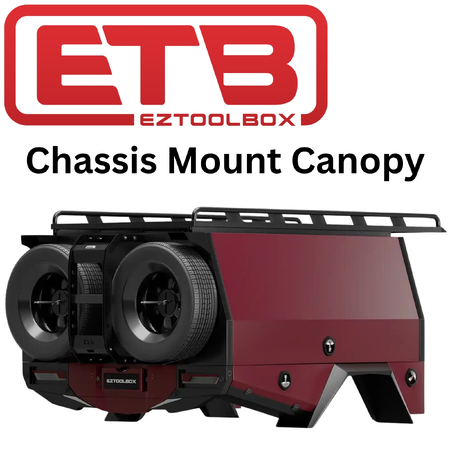

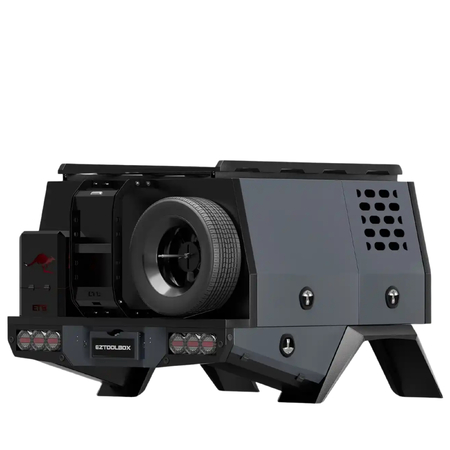

A chassis mount canopy is not merely an accessory; it is a full service body conversion. By removing the factory tub or tray and bolting the canopy directly to the vehicle's chassis rails, you unlock a lower center of gravity, increased payload capacity, and a seamless "OEM+" aesthetic.
Ultimate Guide to Chassis Mount Canopies: 2026 Engineering, GVM Compliance & Off-Road Performance
This comprehensive guide explores the technical engineering behind the EzToolBox range and why it remains the gold standard for durability in the Australian Outback.
Chassis Mount vs. Tray-Mounted: The 2026 Comparative Analysis
Most owners begin their research with a fundamental question: "Why spend more on a chassis mount when I can bolt a canopy to my existing tray?" While tray-mounting is a common entry-point, a chassis-mount system offers three critical engineering advantages.
1. Weight Optimization and GVM Preservation
Modern 4x4s like the Next-Gen Ranger, Toyota Hilux, and Isuzu D-MAX have strict Gross Vehicle Mass (GVM) limits. A standard steel tray can weigh between 120kg and 180kg. When you add a 60kg canopy on top, you have already used 25% of your legal payload before adding a single tool.
- The Chassis Mount Edge: By removing the tray entirely, an ezToolBox chassis mount canopy often results in a lighter total vehicle tare weight. This "weight-saving" approach preserves your payload for water, fuel, and recovery gear.
2. The Physics of the "Lowered Floor" and Center of Gravity (CoG)
One of the most overlooked benefits of a chassis mount is the Center of Gravity. In a standard tray setup, your heavy gear (fridges, batteries, recovery gear) sits roughly 250mm–300mm above the chassis rails.
- Stability: The floor of an ezToolBox chassis mount is typically 100mm–150mm lower than a tray-mounted equivalent. In off-road scenarios—specifically off-camber side slopes in the Victorian High Country—this lower CoG is the difference between a safe crawl and a rollover risk.
- Aerodynamic Efficiency: Lowering the canopy profile reduces the "frontal area" drag. At 110km/h on the highway, a chassis-mounted unit can save up to 1.5L/100km compared to a high-riding tray setup.
3. Maximum Internal Volume (The Flush Floor Design)
Traditional trays have "lips" or side rails that force a canopy to be narrower. A chassis mount features a Flush Floor, allowing for wider internal drawer systems and easier access to heavy equipment without lifting it over a tray edge.
Advanced Metallurgy: Why 5052-H32 Marine-Grade Aluminium Wins
To outrank competitors, we must look at the material science. Many budget imports use 3003-grade aluminium because it is cheap and easy to machine. However, for a chassis mount—which acts as a stressed member of the vehicle’s architecture—you need the superior properties of 5052-H32 Marine-Grade Alloy.
- Magnesium Content: 5052 alloy contains approximately 2.5% Magnesium. This gives it a higher "Fatigue Strength" than 6061 or 3003. This is crucial because a ute chassis twists when off-roading. If your canopy is too rigid (like steel) or too brittle (like low-grade alloy), the welds will "pop" over time.
- Corrosion Resistance: 5052 is specifically designed to resist "White Rust" in coastal environments. If you are driving on North Stradbroke Island or the Gibb River Road, the salt and humidity won't degrade the structural integrity of your ezToolBox unit.
- Full-Seam TIG Welding: We avoid the "rivet-only" construction found in budget imports. Every ezToolBox chassis mount is Full-Seam TIG Welded, creating a unibody structure that acts as a protective, dust-proof cage for your gear.
EzToolBox Elite vs. Industry Standard
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ADR Compliance: Navigating the Legal Landscape in 2026
In 2026, the Road Vehicle Standards Act (RVSA) and ADR 42/04 are strictly enforced. If your canopy isn't compliant, your insurance is void.
- Rear Overhang Rules: Your canopy must not exceed 60% of the wheelbase length from the center of the rear axle. We provide CAD-calculated dimensions for all Dual-Cab and Extra-Cab models to ensure you stay legal.
- Light Visibility: Standard canopy builds often block the factory taillights. We integrate Sequential LED units that maintain the 15-degree visibility angle required by ADR 13/00 while preventing "bulb out" dashboard errors on Next-Gen vehicles.
- Fuel Filler Venting: Many DIY chassis mounts fail because the fuel breather is pinched. Our CNC-laser-cut stainless steel relocation kits include a specific "anti-surge" housing to prevent fuel spills during high-flow filling.
Electrical Integration & Thermal Management
A 2026 canopy is only as good as its power system. We have engineered our units with an Internal Unistrut Framing System.
- No-Drill Mounting: Use the Unistrut channels to mount Victron, Redarc, or Enerdrive systems without drilling through the outer skin. This preserves the IP66 water-resistance rating.
- Positive Pressure Venting: Lithium batteries and DC-DC chargers generate massive heat inside a sealed box. We incorporate dust-filtered vents that create positive pressure while driving. This keeps dust out but allows heat from the 2000W Inverter to escape.
- Thermal Isolation: Because aluminium is a conductor, an unlined canopy can reach 65°C in the sun. We recommend our Laser-Cut Internal Carpet Lining with a 3mm foam backing as a thermal break.
Vehicle-Specific Fitment Guide: 2026 Technical Dimensions
Selecting a chassis mount requires precise dimensional matching. Below are our engineering standards for Australia's top-selling 4x4s:
- Toyota Hilux (SR & SR5): * Size: 1800mm (L) x 1800mm (W).
- Note: Requires a specific fuel filler neck extension to clear the wider SR5 chassis rails.
- Ford Ranger (Next-Gen XL, XLS, XLT, Wildtrak):
- Size: 1900mm (L) x 1850mm (W).
- Note: Includes "Blind Spot Radar" relocation brackets for the Ford BLIS system.
- LandCruiser 79 Series (Single & Dual Cab):
- Size: 2100mm (L) for Single Cab / 1600mm (L) for Dual Cab.
- Note: Built with a 3.5mm base plate to handle high-torque vibrations.
The "Service Body" ROI for Commercial Fleets
For business owners, a chassis mount is a tax-effective asset.
- Asset Portability: Unlike a permanent tub modification, an ezToolBox canopy can often be transferred to a newer model vehicle with a simple bracket change, saving thousands in fleet rotation costs.
- Efficiency: Internal adjustable shelving reduces "tool search time" by 30 minutes per day. For a fleet of 10 technicians, that equates to over 1,200 hours of recovered billable time annually.
Maintenance Protocol: Preserving Your 10-Year Asset
To maintain the IP66 rating and structural finish, follow this schedule:
- Seal Lubrication (Every 6 Months): Use a silicone-based spray on the pinch-weld rubber seals to prevent UV perishing.
- Lock Adjustment: Our Whale Tail Compression Locks are adjustable. Use a 10mm spanner to tighten the compression cam as the vehicle's chassis "settles" after its first 5,000km.
- Fastener Torque Check: After your first 1,000km of corrugated road travel, check the torque on your chassis mounting bolts (M12 High-Tensile).
FAQ: Solving Professional and Recreational Problems
Q: Does a chassis mount canopy require a GVM upgrade?
A: Not necessarily. Because it is lighter than a "Tray + Canopy" combination, it often provides more usable payload. However, for full touring builds, it provides the perfect base for a Stage 2 GVM upgrade.
Q: Can I mount a Rooftop Tent (RTT) on a Chassis Mount?
A: Yes. Our internal bracing is rated for 350kg static load. This means you can fit a hard-shell RTT and a 270-degree awning without needing an external rack.
Q: Can I reinstall my factory reverse sensors and camera?
A: Absolutely. We provide specific mounting brackets for OEM Reverse Cameras and Parking Sensors.
Conclusion: Why ezToolBox is Australia's #1 Choice
The decision to move to a chassis mount canopy is an investment in vehicle performance. By prioritizing 5052-H32 Marine-Grade Alloy, ADR compliance, and FEA-proven engineering, you are choosing a solution that is built for the reality of Australian conditions.
